WTS238-7 VAP Energy Meter Voltage Protector

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote
80A Three Phase Voltage Current Protective Energy Meter Voltage Protector
Products Description

WST238-7 VAP type multi-function Protective Device is designed to measure three phase four wire AC active energy / reactive and used in overvoltage protection, under voltage protection and over-current protection. In case of over-voltage fault, under-voltage fault or over-current fault in line, this product can instantly power off the load to prevent electrical equipment from being burnt. The over-voltage, under-voltage and over-current values of this product can all be set up by yourself and can be adjusted on the basis of local practical condition .It is a long use-life product with the advantage of high stability , high over load capability , low power loss and wide working voltage range.



Functioning

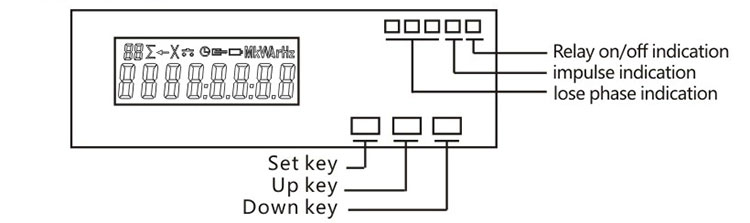

■LCD display with backlight , can display total active energy (kWh), total reactive energy (kvarh), three phase real time current(A), voltage(V), active power (KW),reactive power (kvar). power factor ,frequency

■LCD display kWh (6 digital+2 decimal), Bi-directional total active energy measurement reverse active energy measure in the total active energy

■Product self-design has function of lighting protection

■Overvoltage protection, under voltage protection and over-current protection and lose phase protection can select auto-Reclosing mode or manual--Reclosing mode

■In case of over-voltage fault, under-voltage fault or over current fault, lose phase in any phase line, the product can power off the line and can automatically restore connecting the line over a time delay after voltage of the lien is recovered to normal condition.

■In case of transient over voltage in line, the product can protect the equipment from false operation.

■In case that the line subjects to unstable voltage or sudden power-off and power-on due to loosened connection and other fault, the product will disconnect the line.

■When fault voltage of the line reaches the peak, the product itself will not be damaged.

■Lose neutral line protection

■Lose phase protection ,and there have phase led indication on meter

■Unbalance voltage protection , if the voltage unbalance value exceed the setting value between any 2 phase of three phase .the device will cut off the load

■Over-current protection mode

■It can setting delay time for delay switch on / switch off function

■Interval active energy measure , it can resettable in any time after push button last 5s

■Last 5 times protection event records

■Diversified design for the protection , you can closed t any one of overvoltage protection, under voltage protection and over-current protection in any time

■35mm din rail installation , bottom type wire connection

Input working voltage

160~300V phase-N

Overvoltage protection value

85-300V ( default 270V) phase-N

Under voltage protection value

85-300V ( default 170V) phase-N

Over current protection value

1-80A

Rated frequency

50/60Hz

Delay in switch on after power off

5-255s ( default 5s) phase-N

Voltage circuit power consumption

≤1W each phase

Current circuit power consumption

<1VA each phase

Active energy display range

0~999999.99kWh

Voltage/current/active power accurate

+0.5%

Active energy accurate

+1% (IEC62053-21)

Operating temperature

-25℃ ~+70℃

Storage temperature

-40℃ ~+80℃

Relative humidity

≤85%

Altitude

≤2500m

Electromagnetic Environment

E2

Mechanical life

≥100000 cycles

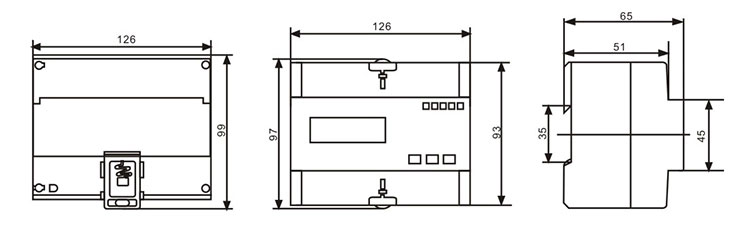

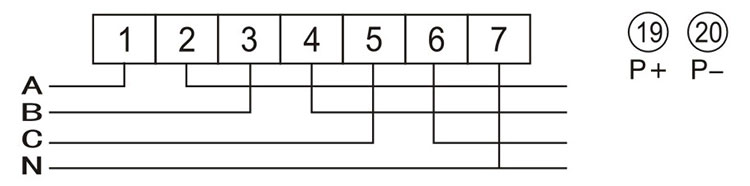

接线图
