D69-2049 100A 80-300V Digital AC Voltmeter and Ammeter Voltage Meters Electric Power Energy

D69-2049 Voltmeter and Ammeter Voltage Meters Electric Power Energy

Name: D69-2049 Voltmeter and Ammeter Voltage Meters Electric Power Energy
Brand: Winston
SKU: 01935
Rating: 4.1 (1018 reviews)

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Products Description

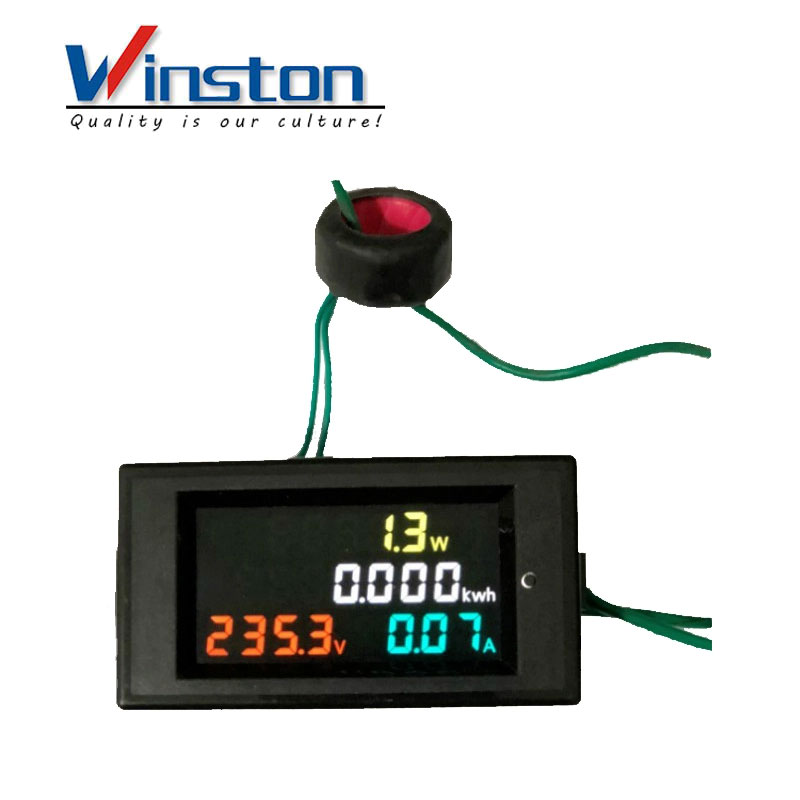

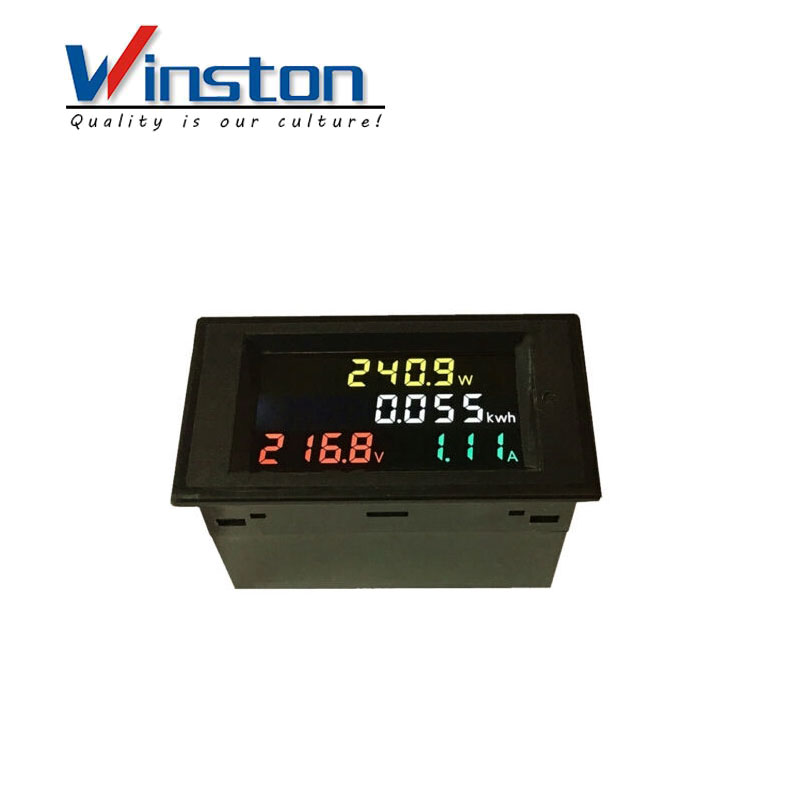

D69-2049 type digital display multi-function meter is to display the measured AC voltage, AC current, active power and electric quantity at the same time on one instrument. The display part of the instrument adopts a color high-definition LCD display.

Application Method

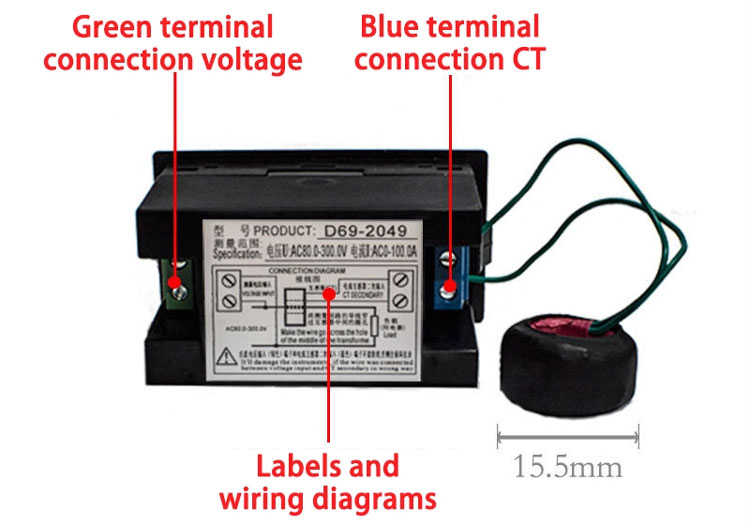

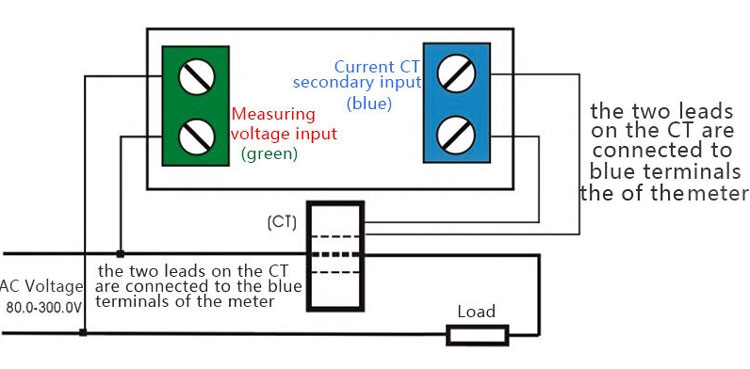

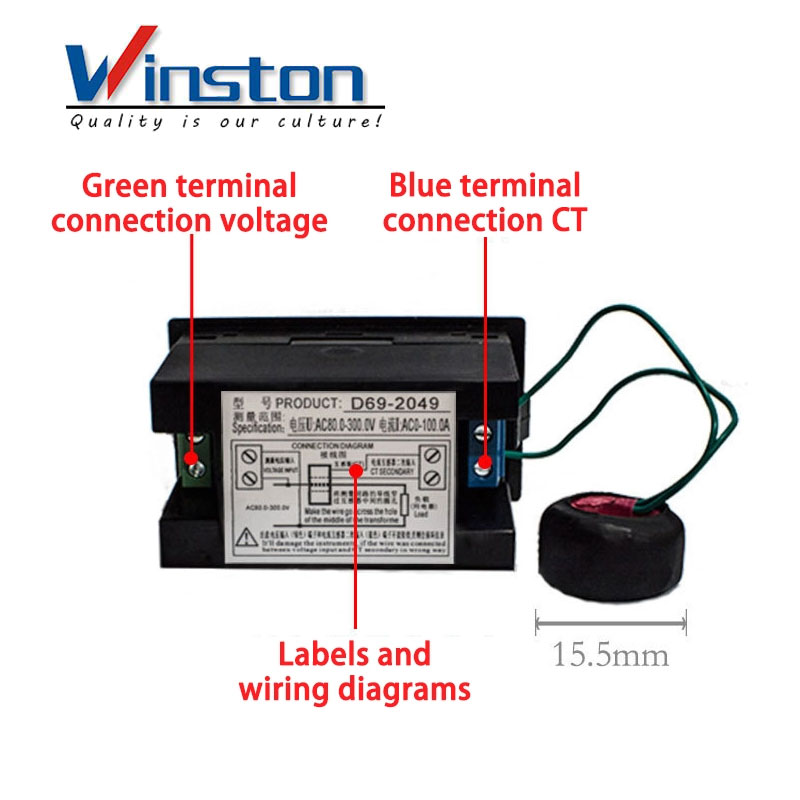

1. According to connection graph, connect the green wire of secondary current transformer to the blue terminal of meter and make the wire of measurement circuit through the hole in the current transformer.

2. Supply power and start to measure and display the result.

3. Press down the button last for 5 second, the electric energy will to be zero.

Model	D69-2049
Power supply	AC80-300VAC for 110V 220V, 200-450V for 380V; AC0-99.99A above 100a,display 100.0A
Active power	0-10000W display 0-9999.9W; above 10000W display 10000-22000W
Electric energy	0-10000kwh, above 10kwh 00000.99kwh~9999999kwh
Measuring speed	About 2 times/s
CT	External

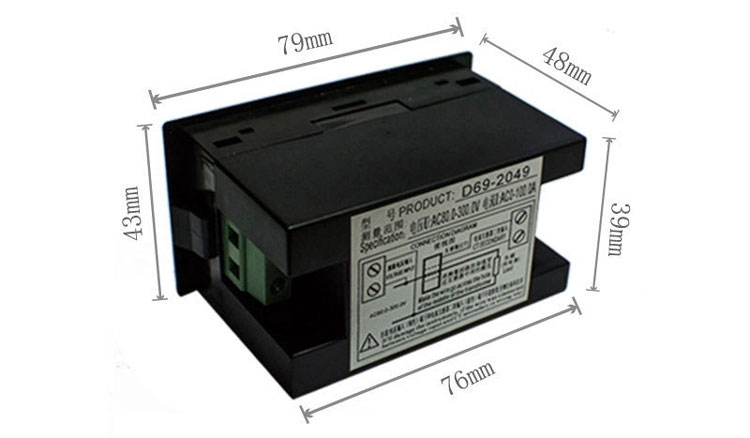

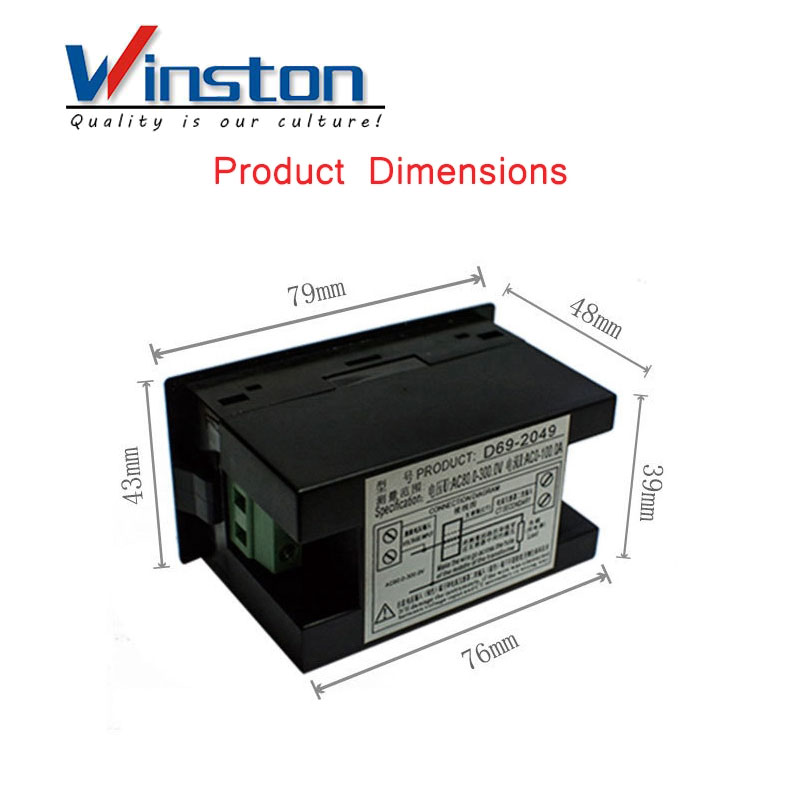

Size	794348mm
Install Size	79*39mm
Accuracy	1％±2 words
