D69-2058 Multi-function Digital Meter Voltmeter Current Ammeter Electric Energy Frequency Meter Digital Panel

D69-2058 Voltmeter Ammeter Electric Energy Frequency Meter Digital Panel

Name: D69-2058 Voltmeter Ammeter Electric Energy Frequency Meter Digital Panel
Brand: Winston
SKU: 01934
Rating: 4.1 (1017 reviews)

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Products Description

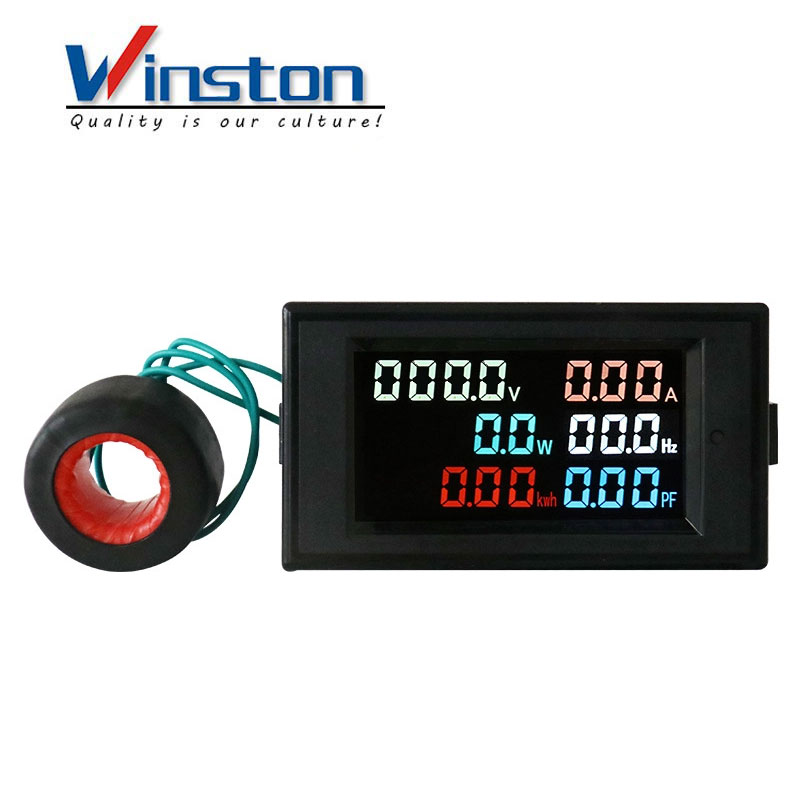

D69-2058 multi-function Digital meter can measure AC voltage, AC current, active power, power factor, power frequency and electric energy. HD LCD has adopt for display module

Application Method

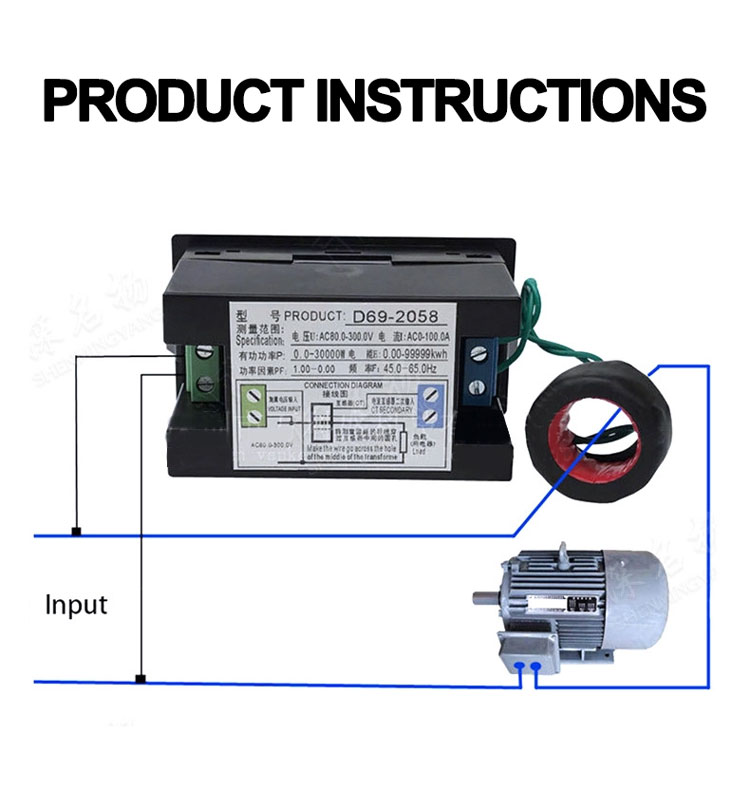

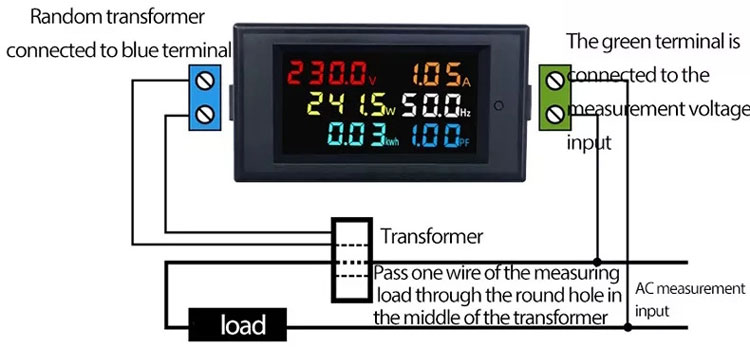

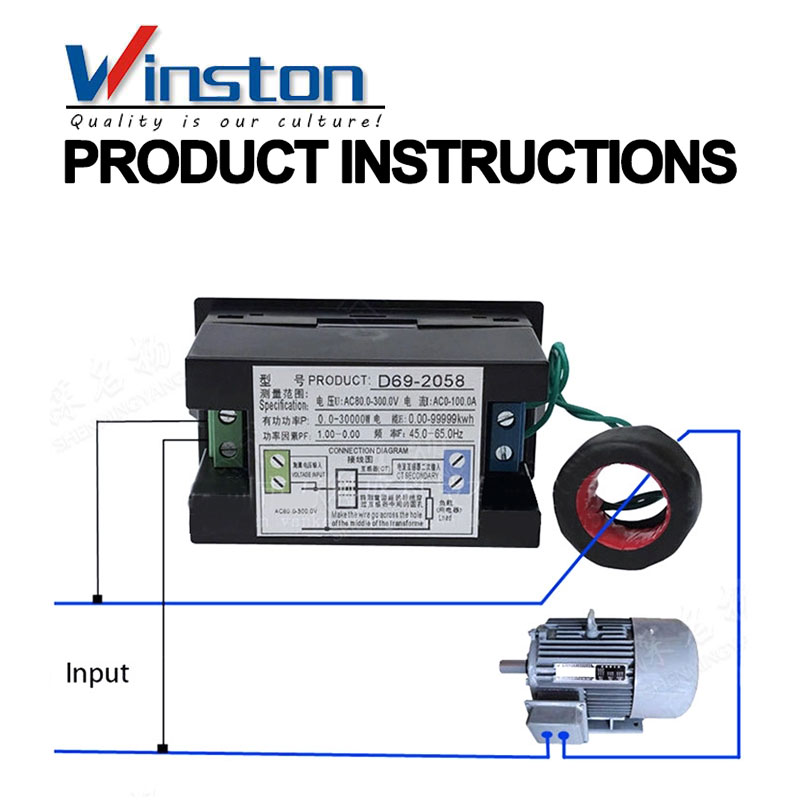

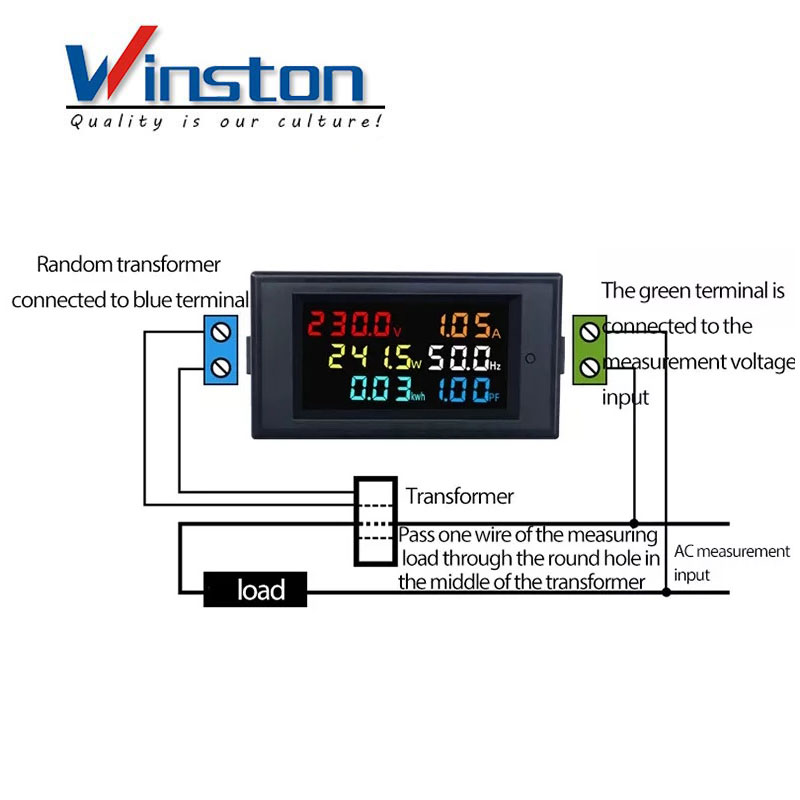

1.According to connection graph, connect the green wire of secondary current transformer to the blueterminal of meter and make the wire of measurement circuit through the hole in the current transformer.

2.Supply power and start to measure and display the result.

3.Press down the button last for 5 second, the electric energy will to be zero.

Packaging & Shipping

Model	D69-2058
Power supply	AC80-300VAC for 110V 220V, 200-450V for 380V; AC0-100.0A
Active power	(measuring AC80-300V) 0-30000W (measuring AC200-450V 45000W)
Electric energy	0-99999kwh
COSφ	0.00-1.00PF
Measuring speed	About 2 times/s
CT	External

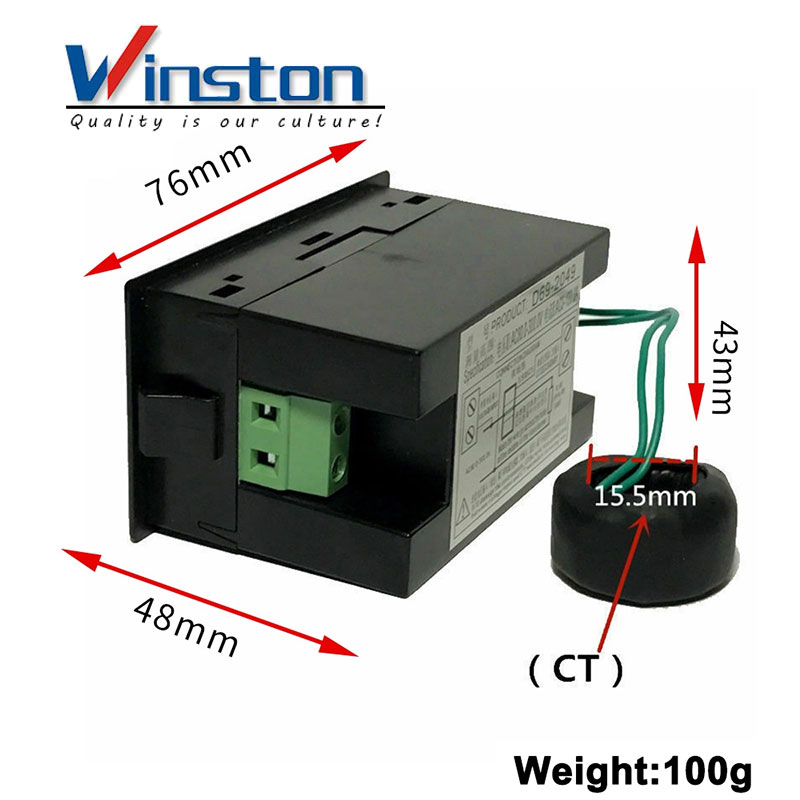

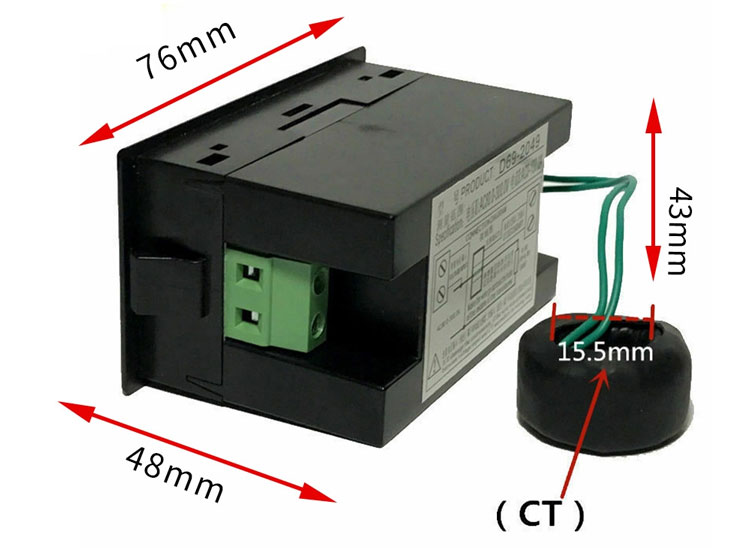

Size	794348mm
Install size	79*39mm
Accuracy	1％±2 words
