Name: LRS-200 200w single output switch model power supply
Brand: Winston
SKU: 02079
Rating: 4.9 (1090 reviews)

LRS-200 200w single output switch model power supply

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

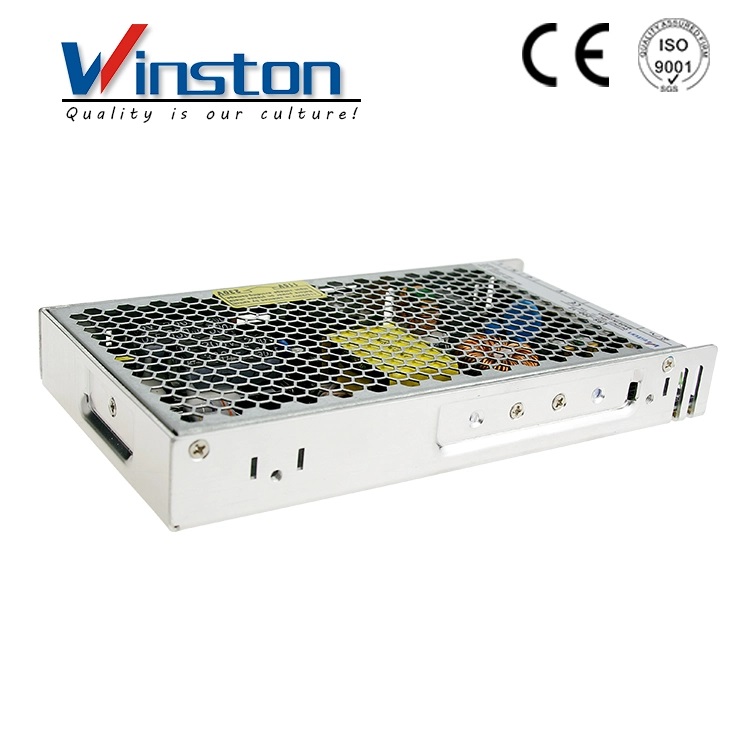

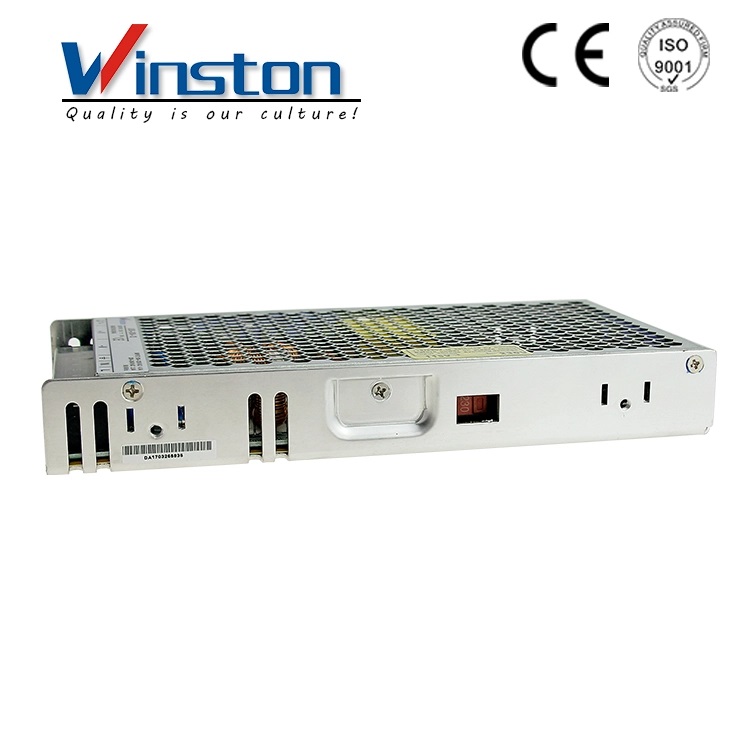

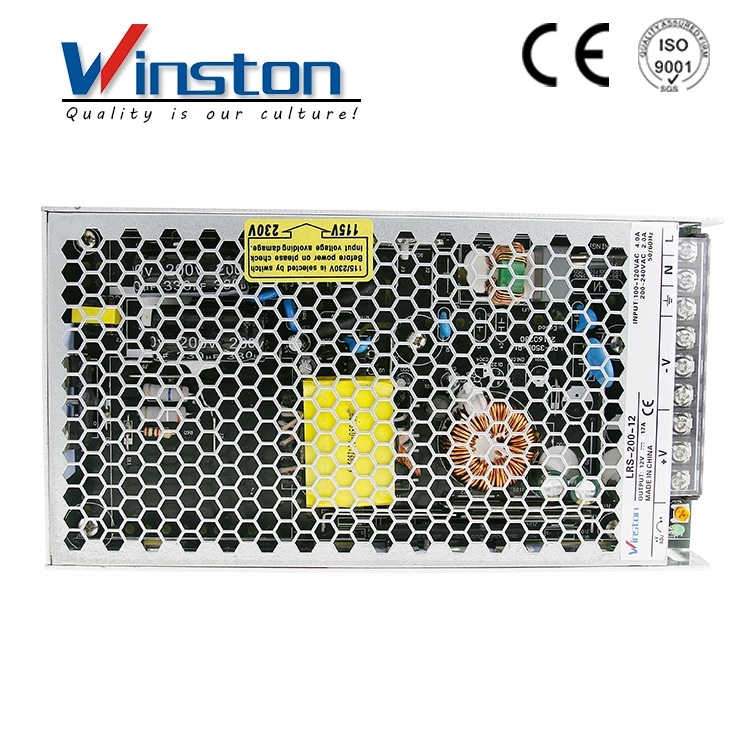

The LRS-200 is a 200W single-output power supply unit produced by Winston, featuring a slim 30mm design, supporting an input voltage range of 115VAC or 230VAC, selectable via a switch.

This series offers a variety of output voltages, including 4.2V, 5V, 12V, 15V, 24V, 36V, and 48V.

The LRS-200 power supply unit boasts an efficiency of up to 90% and uses natural convection cooling, with an operating temperature range from -25℃ to +70℃, making it suitable for various industrial environments.

MODEL	LRS-200-5	LRS-200-12	LRS-200-15	LRS-200-24	LRS-200-36	LRS-200-48
DC Output Voltage	5V	12V	15V	24V	36V	48V
Rated Current	40A	17A	14A	8.8A	5.9A	4.4A
Current Range	0~40A	0~17A	0~14A	0~8.8A	0~5.9A	0~4.4A
Rated Power	200W	204W	210W	211.2W	212.4W	211.2W
Ripple &Noise	150mVp-p	150mVp-p	150mVp-p	150mVp-p	200mVp-p	200mVp-p
Voltange ADJ. Range	4.5~5.5V	10.2~13.8V	13.5~18V	21.6~28.8V	32.4~39.6V	43.2~52.8V
Voltage Tolerance	±3.0%	±1.5%	±1.0%	±1.0%	±1.0%	±1.0%
Line Regulation	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Load Regulation	±2.0%	±1%	±0.5%	±0.5%	±0.5%	±0.5%
Setup, Rise Time	1300ms, 50ms/230VAC 1300ms,50ms/115VAC at full load
Hold Up Time	16ms/230VAC 12ms/115VAC at full load
Voltage Range	90 ~ 132VAC / 180 ~ 264VAC by switch 240 ~ 370VDC (switch on 230VAC)
Frequency Range Input	47 ~ 63Hz
Efficiency	87%	87.5%	88%	89.5%	89.5%	90%
AC Current	4A/115VAC 2.2A/230VAC
Inrush Current	CCOLD START 60A/115VAC 60A/230VAC
Input Leakage Current	<2mA/ 240VAC
Over Load	110 ~ 140% rated output power
Over Load	Protection type : Hiccup mode, recovers automatically after fault condition is removed
Over Voltage	5.75~6.75V	13.8~16.2V	18~21V	28.8~33.6V	41.4~48.6V	55.2~64.8V
Over Voltage	Protection type : Hiccup mode, recovers automatically after fault condition is removed
Working Temp.	-20 ~ +70ºC (Refer to "Derating Curve")
Working Humidity	20 ~ 90% RH non-condensing
Storage Temp.,Humidity	40 ~ +85 , 10 ~ 95% RH
Temp.Coefficien	±0.03%/ºC (0~50ºC)
Vibration	10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
Safety Standards	EN60950-1, EN60335-1, EN61558-1 2 16 approved
Withstand voltage	I/P-O/P:3.0KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25ºC/70% RH
MTBF	347.5K hrs min. MIL-HDBK-217F (25ºC)
Dimension	21511530mm (LWH)
Packing	0.66kg

215mm x 115mm x 30mm (L x W x H).

Industrial automation machinery
Industrial control systems
Mechanical and electrical equipment
Electronic instruments, devices, and appliances

The LRS-200 series of power supply units is an ideal choice in the industrial field due to its high efficiency, high reliability, and wide range of applications.

Ensure the correct input voltage: Choose the appropriate input voltage based on the device requirements and ensure it does not exceed the input voltage range of the power supply.
Load requirements: Do not exceed the power supply's rated load to avoid damaging the power supply or reducing its service life.
Avoid overheating: Although the LRS-200 is designed to operate without a fan, ensure sufficient air circulation for heat dissipation.
Correct connection: Make sure all power connections are secure and correct.
Avoid moisture and dust: Despite the power supply's design for environmental resistance, try to avoid and dusty environments.
Regular inspection: Regularly check the status of the power supply, including checking for overheating, noise, or other abnormalities.
Follow EMC guidelines: If the power supply will be used with sensitive electronic equipment, ensure proper electromagnetic compatibility (EMC) measures are followed.
Pay attention to safety standards: The LRS-200 complies with international safety standards such as UL62368-1; use the power supply in accordance with these standards.
Avoid severe vibration: Although the power supply can withstand vibration tests of up to 5G, try to avoid severe vibration and impact.
Check terminal pin definitions: When installing or maintaining, ensure you understand the terminal pin definitions and make the correct connections.
Storage conditions: Pay attention to temperature and humidity when storing, avoiding extreme conditions.
Follow the product manual: Carefully read and follow the guidelines in the product manual during installation and use.
