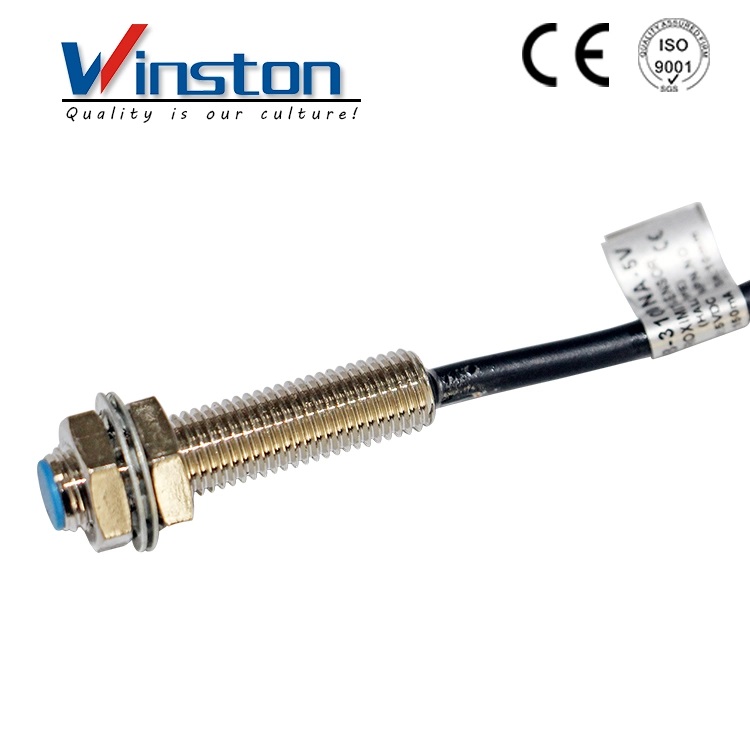

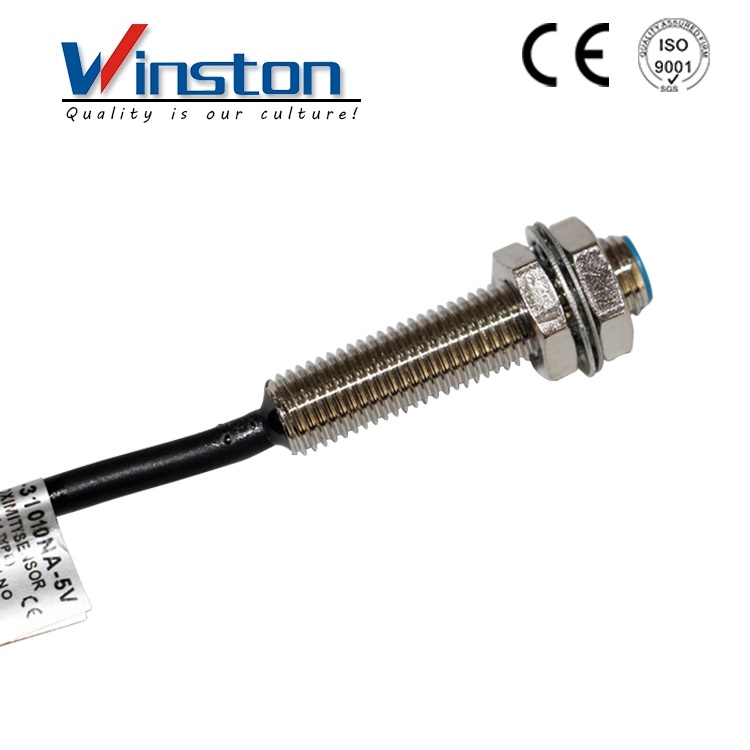

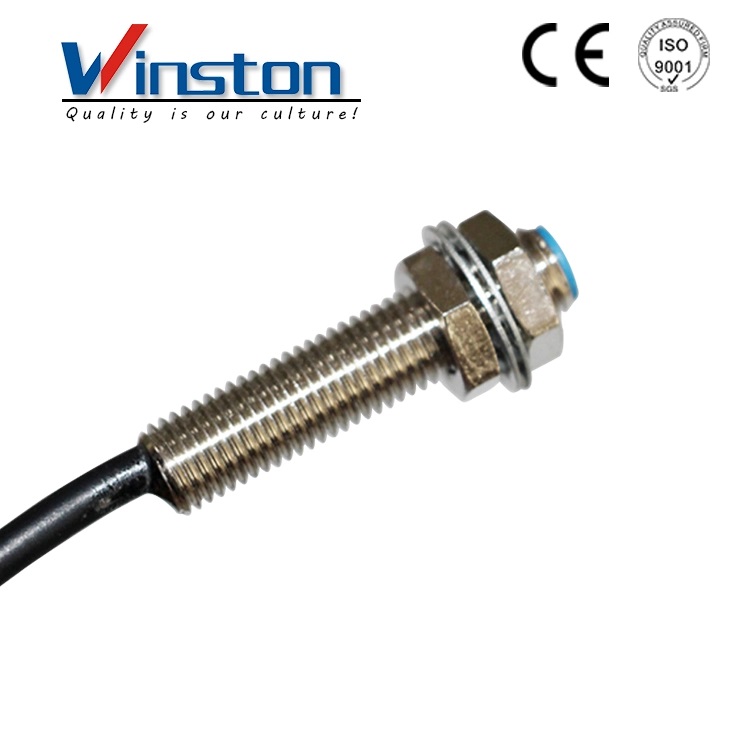

SM8 Hall Sensor

Name: SM8 Hall Sensor
Brand: Winston
SKU: 02052
Rating: 4.1 (1076 reviews)

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Technic data

SM8	Detection Distance				10mm
	Detectable object				Permanent magnet
	Flush	5-24VDC	NPN	NO	SM8-31010NA
				NC	SM8-31010NB
			PNP	NO	SM8-31010PA
				NC	SM8-31010PB
	Output	low level voltage	200mV
		high level current	0.1uA
	Main current		8mA
	ON-OFF frequency		320KHz
	Working point magnectic density		22mT
	Shell material		Metal
	Ambient temperature		—25℃ ~ + 70 ℃
	Protection structure		IEC standand IP67
