SD035 Enclosure Receptacle

SD035 Enclosure Receptacle
SD035 Enclosure Receptacle
SD035 Enclosure Receptacle

Quick connections
Available with or without fuse
DIN rail mountable

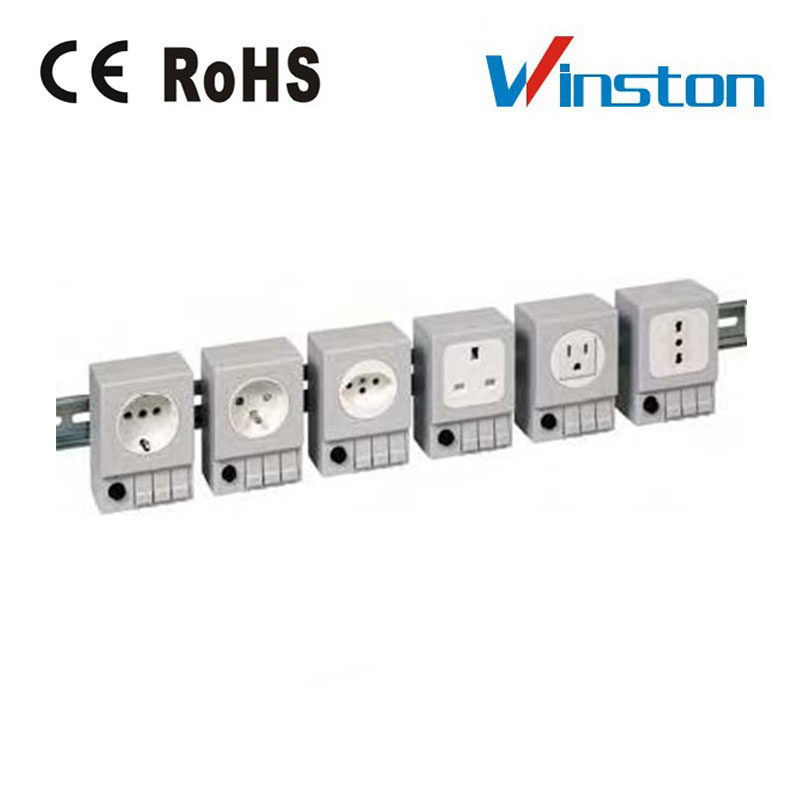

The DIN rail mounted electrical receptacle can be quickly fitted and connected in enclosures allowing the use of auxiliary products such as hand lamps and power tools. The unit is available with and without fuse, and in many world outlet standards.

Connection 3 cage clamps for solid and stranded wire AWG 20-14
(0.5-2.5 mm²)
Housing plastic, UL 94V-0, light grey
Mounting clip for 35 mm DIN rail, EN 60715
Mounting position vertical
Operating / Storage temperature -49 to +158 °F (-45 to 70 °C)

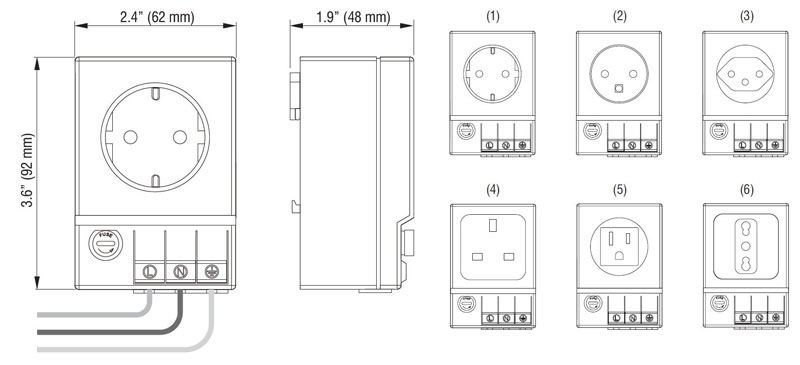

Dimensions  3.6 x 2.4 x 1.9” (92 x 62 x 48 mm)
Weight approx. 7.1 oz. (200 g)
Protection class I (grounded)
Protection type IP20



Part No. Operating Voltage max. Socket Model Nominal Current
03500.0-00 AC 250 V Germany/Russia (1) with fuse*  6.3 A
03500.0-01 AC 250 V Germany/Russia (1) without fuse  16.0 A
03501.0-00 AC 250 V France/Poland (2) with fuse* 6.3 A
03501.0-01 AC 250 V France/Poland (2) without fuse 16.0 A
03502.0-00 AC 250 V Switzerland (3) with fuse* 6.3 A
03502.0-01 AC 250 V Switzerland (3) without fuse 10.0 A
03503.0-00 AC 250 V UK/Ireland (4) with fuse* 6.3 A
03503.0-01 AC 250 V UK/Ireland (4)  without fuse 13.0 A
03504.0-00  AC 125 V USA/Canada (5) with fuse* 6.3 A
03504.0-01 AC 125 V USA/Canada (5)  without fuse 15.0 A
03505.0-00 AC 250 V Italy (6) with fuse* 6.3 A
03505.0-01 AC 250 V V Italy (6) without fuse 16.0 A
