SM 010 Electronic Relay (DC 24 V & DC 48 V)

SM 010 Electronic Relay (DC 24 V & DC 48 V)
SM 010 Electronic Relay (DC 24 V & DC 48 V)

16 Amp DC switching capacity
Variety of applications
Compact design
DIN rail mountable

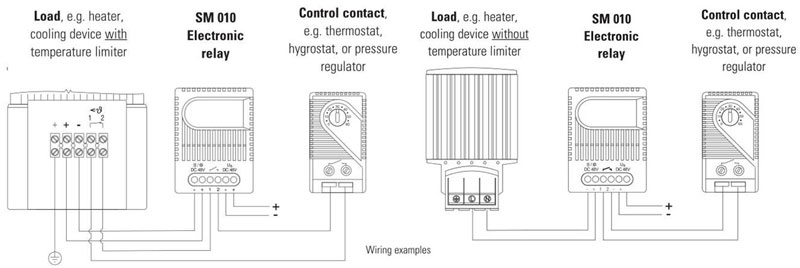

The SM 010 Electronic Relay is used for switching high powered DC operated equipment, such as heaters, up to 16 amps. A separate conventional switch contact is used as controller (e.g. thermostat, hygrostat). The electronic relay is available in DC 24 V and DC 48 V versions.


Technic data

Contact type NO - normally open (Relay/MOSFET)
Service life > 100,000 cycles
Max. inrush current DC 16 A
Connection 6-pole terminal, clamping torque 0.5 Nm max.:
solid wire - AWG 14 max. (2.5 mm²)
stranded wire (w/ wire end ferrule) - AWG 16 max. (1.5 mm²)
Housing plastic, UL 94V-0, light grey
Mounting clip for 35 mm DIN rail, EN 60715
Mounting position vertical
Operating / Storage temperature -49 to +158 °F (-45 to +70 °C)

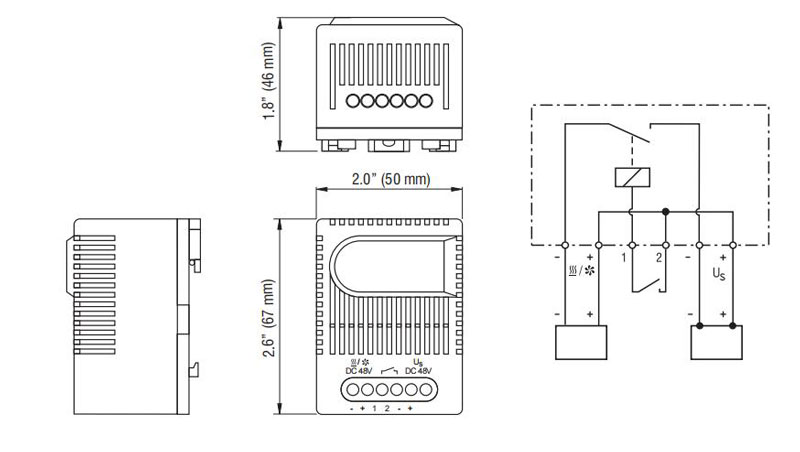

Dimensions 2.6 x 2.0 x 1.8” (67 x 50 x 46 mm)
Weight approx. 3.0 oz. (85 g)
Protection type IP20
Approvals VDE, UL File No. E342261


Part No. Operating voltage Max. Switching capacity Signal current
01000.0-01 DC 48 V (DC 38-56 V) 16 A @ DC 56 V 10 mA @ DC 38 V / 18 mA @ DC 56 V
01001.0-01 DC 24 V (DC 20-28 V) 16 A @ DC 28 V 13 mA @ DC 20 V / 22 mA @ DC 28 V
