Tamper-proof Thermostat (Pre-set) FTO 011 / FTS 011

Tamper-proof Thermostat (Pre-set)   FTS 011
Tamper-proof Thermostat (Pre-set)   FTS 011
Tamper-proof Thermostat (Pre-set)   FTS 011

Product Description

  1. Compact design
  2. Fixed set points
  3. Color coded modules
  4. DIN rail mountable

Tamperproof (Pre-set) Thermostat FTO 011
Contact breaker/NC(red casing)for regulating heaters or for switching signal devices when temperature has fallen below the minimum value. The contact opensWnen temperatu re is rlslna.

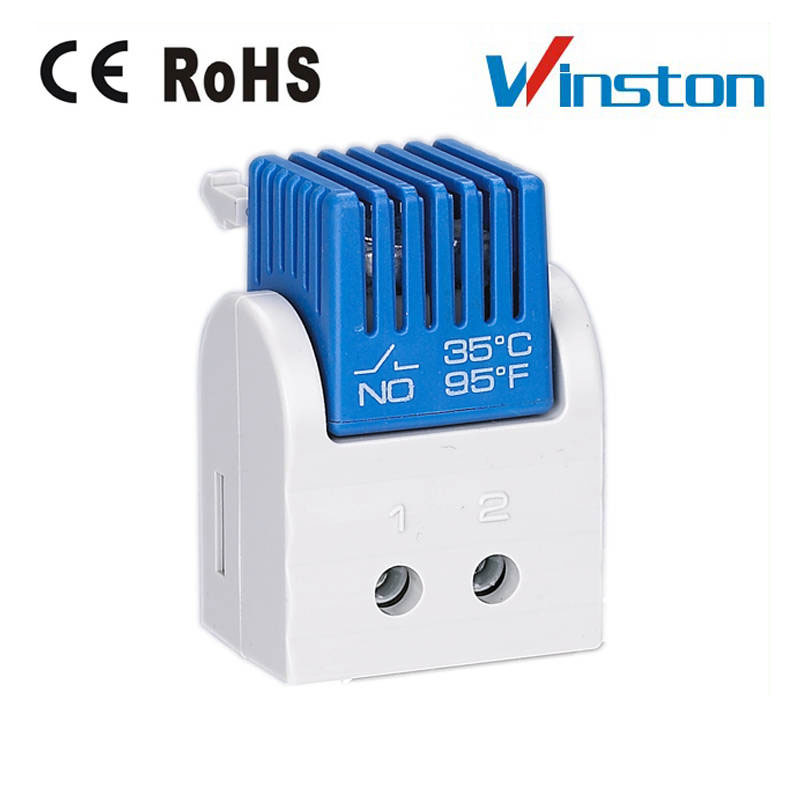

Tamperproof (Pre-set) Thermostat FTS 011
Contact maker/NO(blue casing)for regulating filter fans,heat exchange rs,coolingdevices or for switching signal devices when temperatu re limit has been exceeded.The contact closes when temperau re is rising.

Tamperproof (Pre-set) Thermostat - NC
Opens on temperature rise (red module housing) - for regulating heaters or for switching signal devices when temperature has fallen below the minimum value.

Tamperproof (Pre-set) Thermostat - NO
Closes on temperature rise (blue module housing) - for regulating filter fans, heat exchangers, cool-ing devices or for switching signal devices when temperature limit has been exceeded.
Heaters and cooling equipment can be switched independently from each other with a temperature offset as opposed to the usual SPDT/change-over contact.



Technic data

Sensor element

Thermostatic bimetal

Contact type

snap-action contact

Contact resistance

<20mΩ

Service life

>100,000 cycles

Max. switching capacity

240V AC, 5 (1.6)A

120 VAC, 10 (2)A

DC 30W

Max. inrush current

AC 10A

EMC

acc to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3

Connection

2-pole terminal for 2.5mm², torque 0.8Nm max.

Mounting

clip for 35mm DIN rail, EN 60715 or for exit filter EF 118 Series

Casing

plastic according to UL94 V-0, light grey

Dimensions

47 x 33 x 33mm

Weight

Approx. 23g

Fitting position

variable

Operating/Storage temperature

-20 to +80°C (-4 to +176°F) / -45 to +80°C (-49 to +176°F)

Protection type

IP20



Art. No.

Contact type

Switch-off temperature

Switch-on temperature

01160.0-00

Contact breaker (NC)

+15°C / +59°F (± 5K tolerance)

+5°C / +41°F (± 5K tolerance)

01160.0-01

Contact breaker (NC)

+25°C / +77°F (± 5K tolerance)

+15°C / +59°F (± 5K tolerance)





Switch-on temperature

Switch-off temperature

01161.0-00

Contact maker (NO)

+50°C / +122°F (± 6K tolerance)

+40°C / +104°F (± 7K tolerance)

01161.0-01

Contact maker (NO)

+60°C / +140°F (± 6K tolerance)

+50°C / +122°F (± 7K tolerance)

01161.0-02

Contact maker (NO)

+35°C / + 95°F (± 6K tolerance)

+25°C / +77°F (± 7K tolerance)

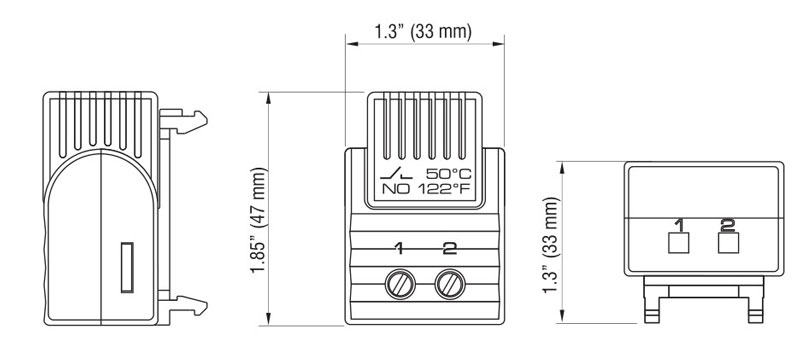

Size

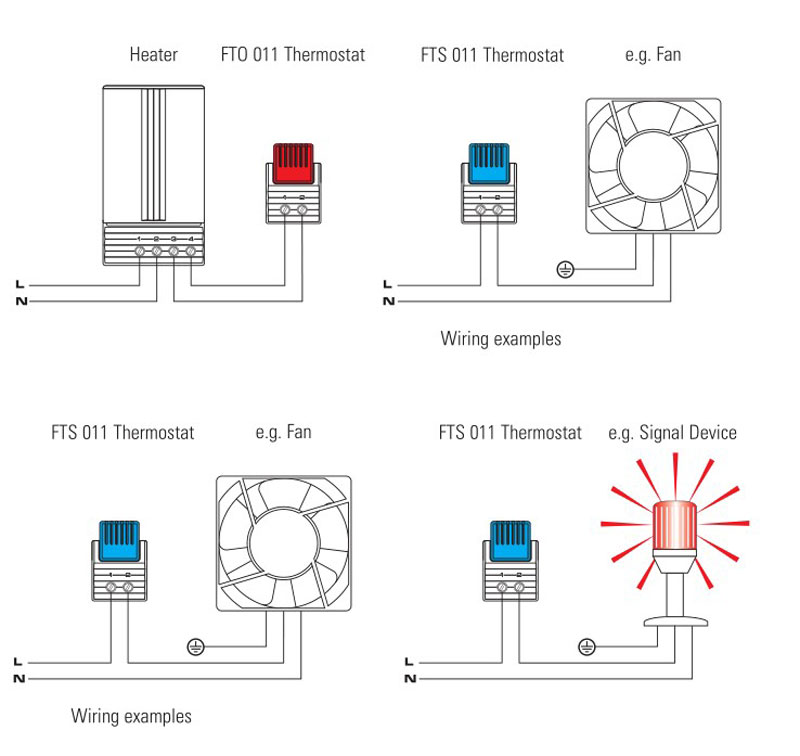

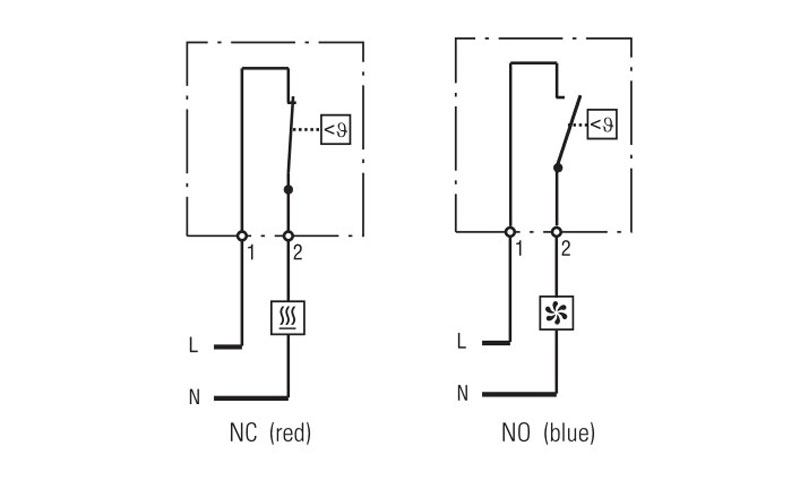

Example of connection
